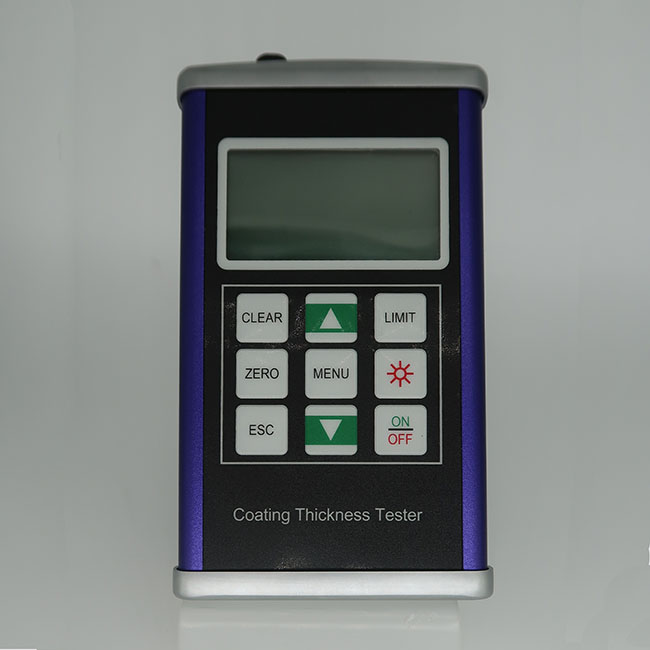

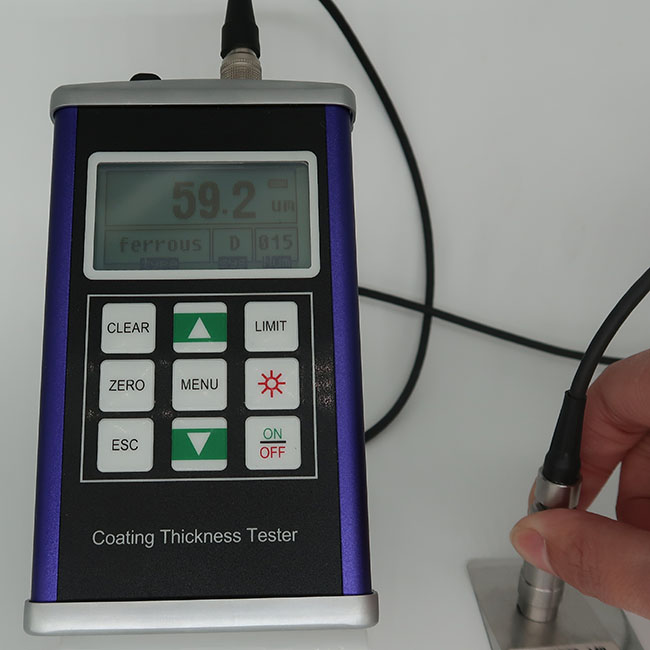

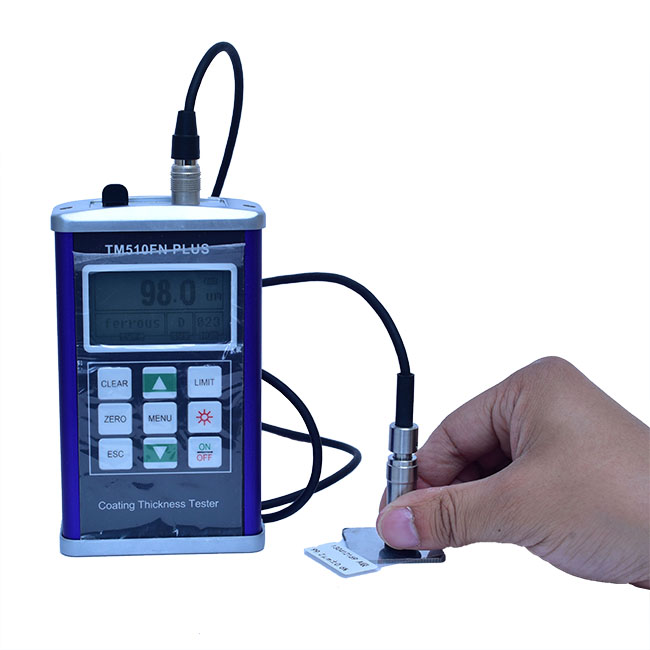

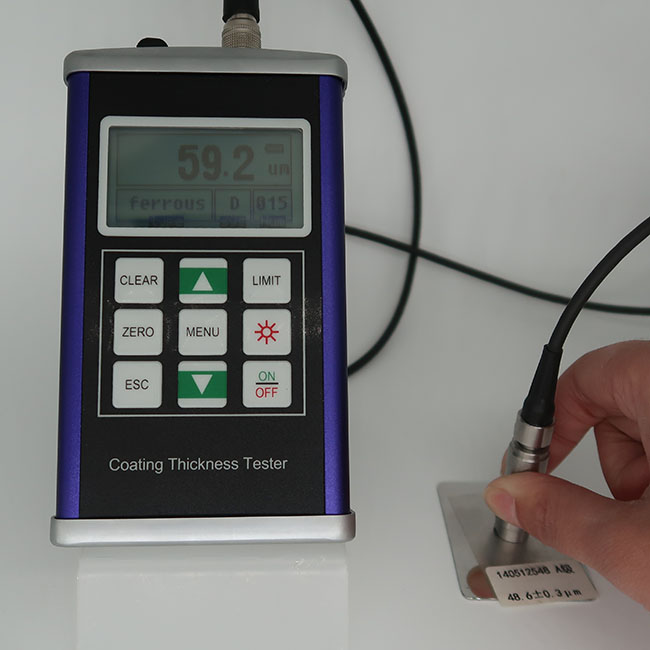

● 2 Measuring modes: continuous/single
● 2 Shutdown modes: manual/automatic
●Wide measuring range with 5 probes available (next page)
●Direct testing mode and block statistics mode (APPL/BATCH)
●Can connect with printer to out of statistical values
●Dataview to connect with PC with USB 2.0 port
●500 datas can be stored

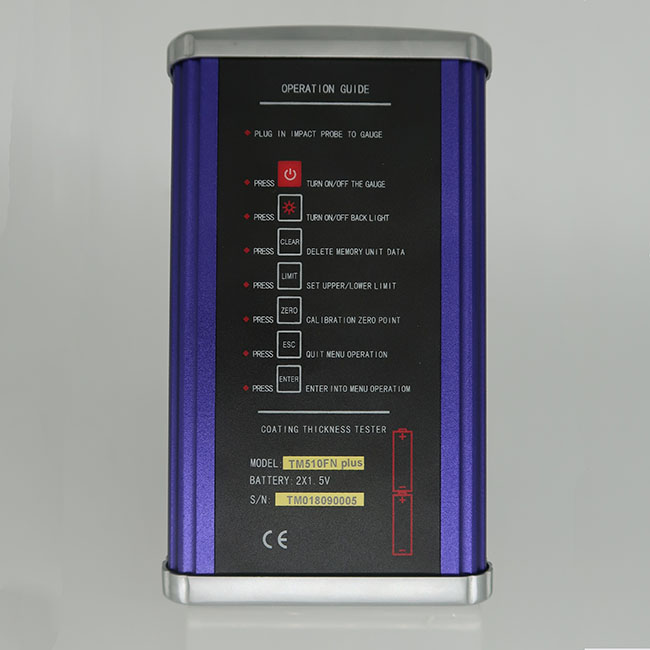

Main features
Can use various probe (F400, F1, F1/90 °, F10, N1, N400, etc.) measurement;
Three calibration methods: one point calibration, two point calibration, the basic calibration;
Display resolution: 0.1 um (measuring range of less than 100 um)
1μ m (range greater than 100 u m)
Have five statistics, data storage 500
There are two working methods: direct ways and means of group
There are two measurements: continuous measurement and a single measurement
There are two shutdown: manual and automatic shutdown shutdown
Can be set Bound: The gauge of the measured value can be automatic alarm and a number of measurements available on the histogram value analysis;
Deleted features: the gross error and error settings can be deleted;
Printing: Print Measurement measurement, statistics, gauges, histogram
A music tone in the operation carried out at any time tips
A power supply under-voltage direct function
An error function
And printers, computer communications (communications software operating environment for the Window operating system) connectivity.
Type F probe ：
Probe
F400
F1
F1/90°
F10
Measuring Principle
Magnetic method
Measuring range(mm)
0～400um
0～1250 um
0～10000
Min resolution(mm)
0.1
0.1
10
Tolerance
One-point calibration (mm)
±(2%H+0.7)
±(2%H+1)
±(2%H+10)
Two-point calibration (mm)
±(1%H+0.7)
±((1%H+1)
±(1%H+10)
Minimum radius of curvature (convex) (mm)
1
1.5
flat
10
Minimum measuring area(mm)
F3
F7
F7
F40
Minimum thickness of base material(mm)
0.2
0.5
0.5
2
Type N probe ：
Probe
N400
N1
CN02
Measuring Principle
Eddy current method
Measuring range (mm)
0～400
0～1250
10～200
Min resolution(mm)
0.1
0.1
1
Tolerance
One-point calibration (mm)
±(2%H+0.7)
±(2%H+1.5)
±(2%H+1)
Two-point calibration (mm)
±(1%H+0.7)
±（1%H+1.5）
--------
Minimum radius of curvature (convex) (mm)
1.5
3
flat
Minimum measuring area(mm)
F4
F5
F7
Minimum thickness of base material(mm)
0.3
0.3
0
Note：H——Measured Value
Technical specifications：
|
Measuring range
|
0-1250µ with standard probe F1.N1 (10.000mm max) |
|
Probes available
|
5 probes available for F (ferrous: on steel/iron) and N (non-ferrous metals) |
|
Tolerance
|
F1:±(1µ+3%H) N1.±(1.5µ+3% H) H: actual thickness tested |
|
Resolution |
Alphanumeric with 4 large digits |
|
Operation language |
English |
|
Standards |
DIN, ISO, ASTM,BS |
|
Min. measuring area |
F1:(standard probe) |
|
Min. curvature radius |
convex:3mm, concave:50mm |
|
Min. substrate thickness |
type F: 0.5mm, type N: 50mm |
|
Calibration |
Zero and foil calibration |
|
Statistics
|
Number of measurements, mean, standard deviation, maximum and minimum of 3000readings |
|
Data memory |
500 measuring data |
|
Limits |
Adjustable with acoustic alarm |
|
Interface |
USB 2.0 |
|
Operating temperature |
0-40℃ |
|
power supply |
AA size 1.5V |
|
Dimensions |
125*67*31mm (main unit) |
|
Weight |
345.g |

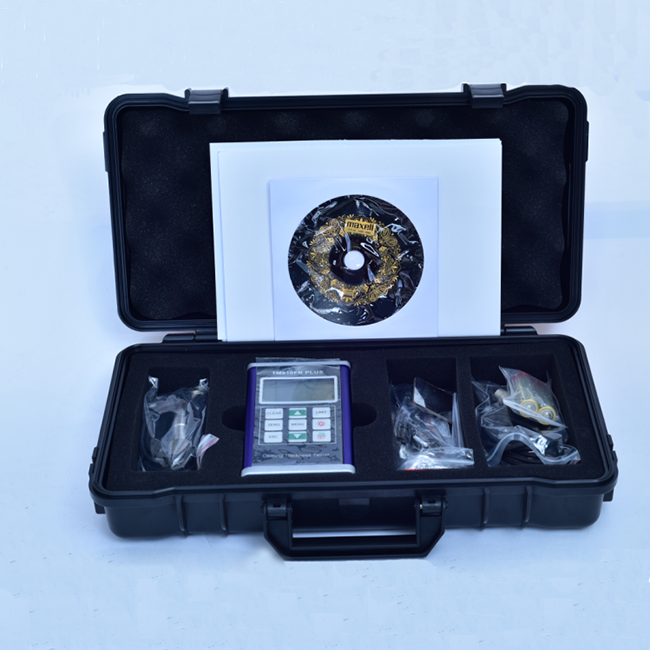

Standard delivery
|
· Main unit |
1 |
|
· Probe F1 or N1 |
1 |
|
· Calibration foils |
5 |
|
· Instruction manual |
1 |
|
· Cetificate |
1 |
|
· Warranty card |
1 |
|
· Carrying case |
1 |
|
Communication cable |
1 |
|
PC software Dataview |
1 |
